| Altabix footbridge | |
| Elche, Spain | |
| Structural typology | Pedestrian Bridges |
| Date | January, 2026 |
| Scope | Detailed design and construction monitoring |
| Cliente | Ayuntamiento de Elche |
| Design | Fhecor |
| Collaboration | GUIA Consultores, S.L.P. |
| Construction | Pavasal |
| Owner | Ayuntamiento de Elche |
Construction project drafted by FHECOR - GUIA Consultores Joint Venture and approved in 2022.
The work consisted of the study for the execution of a pedestrian walkway, ramps, and access stairs, along with a retaining wall and the urbanization of the surroundings over the Alicante-Elche suburban train line, in the Altabix area in Elche (Alicante).

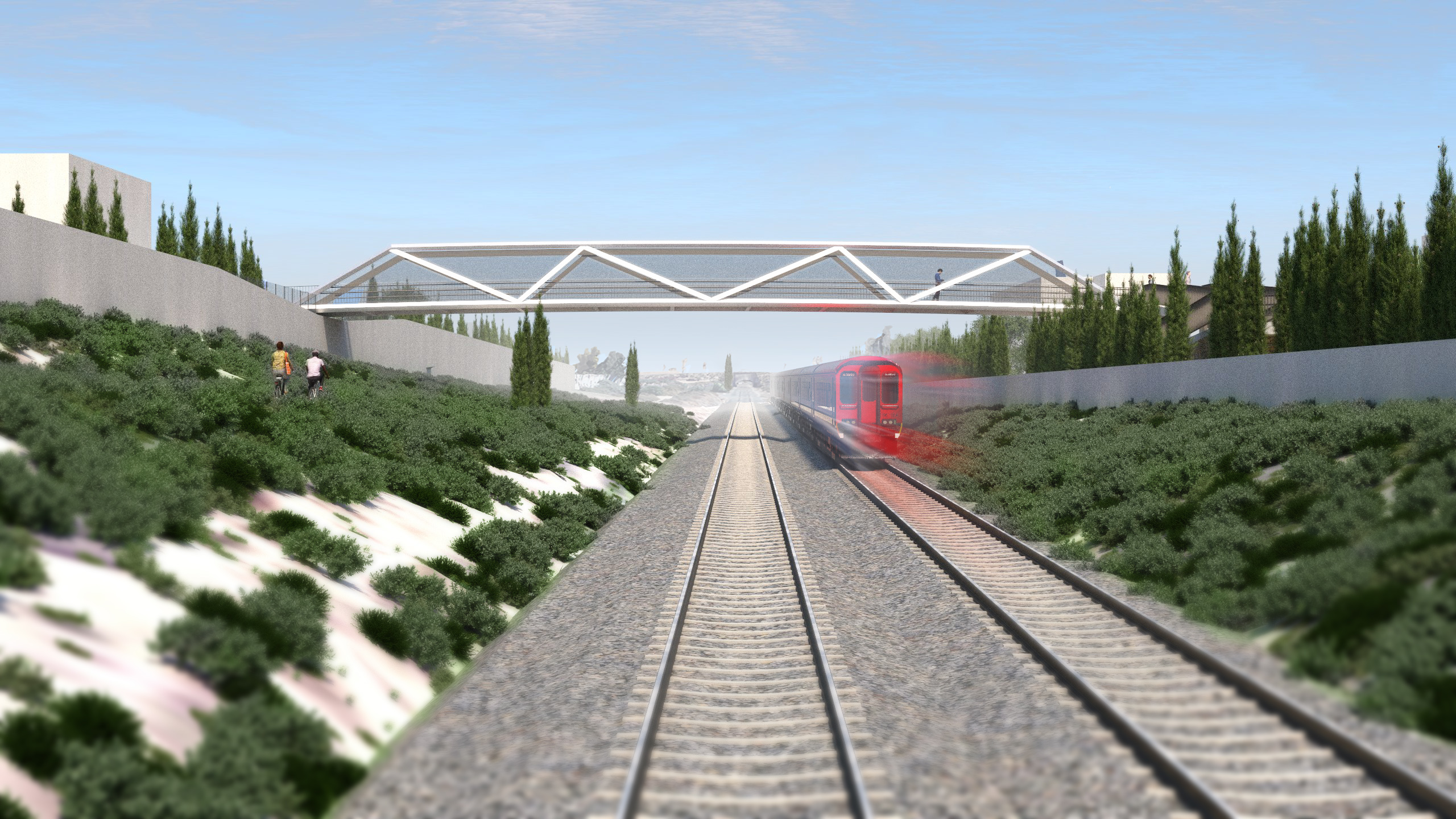

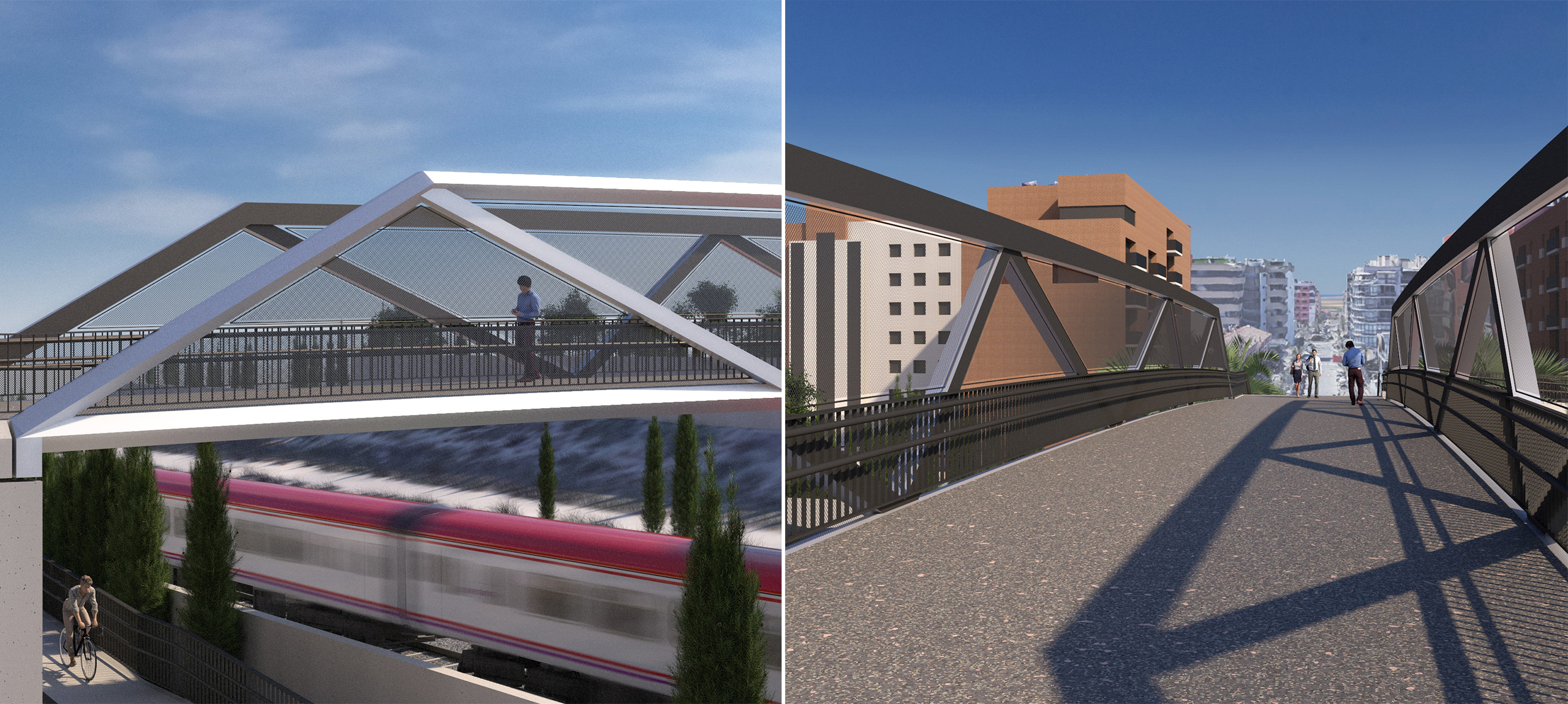

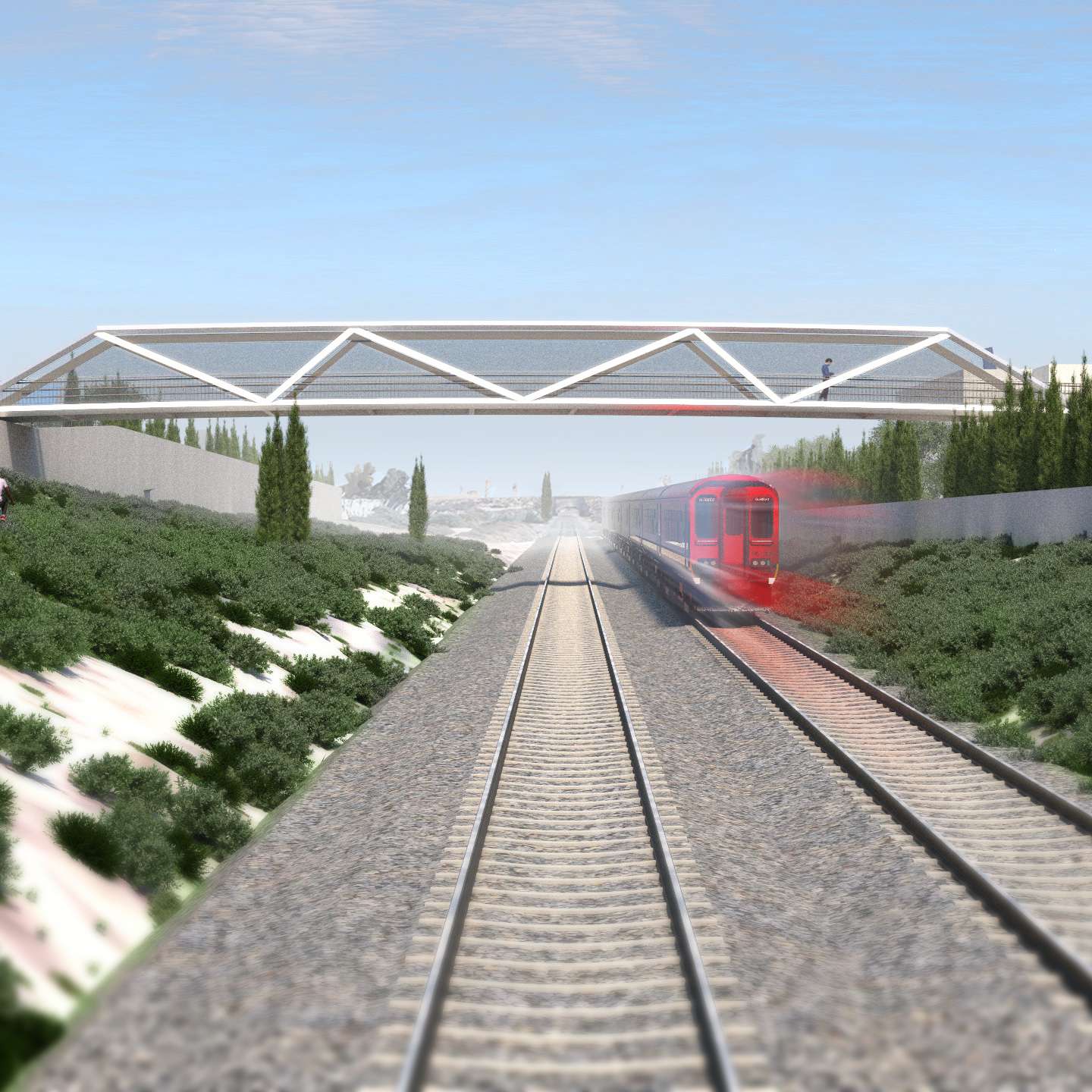

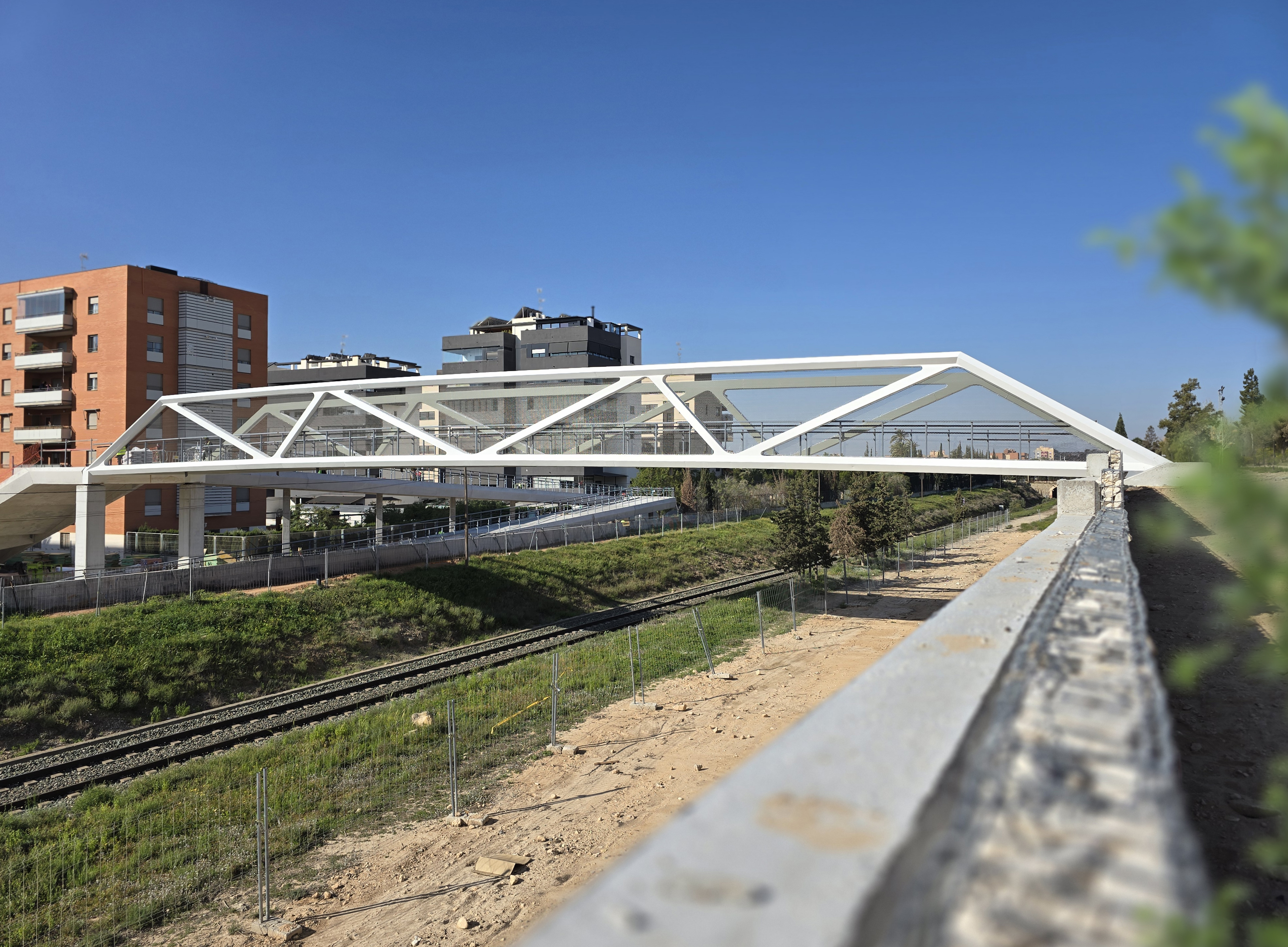

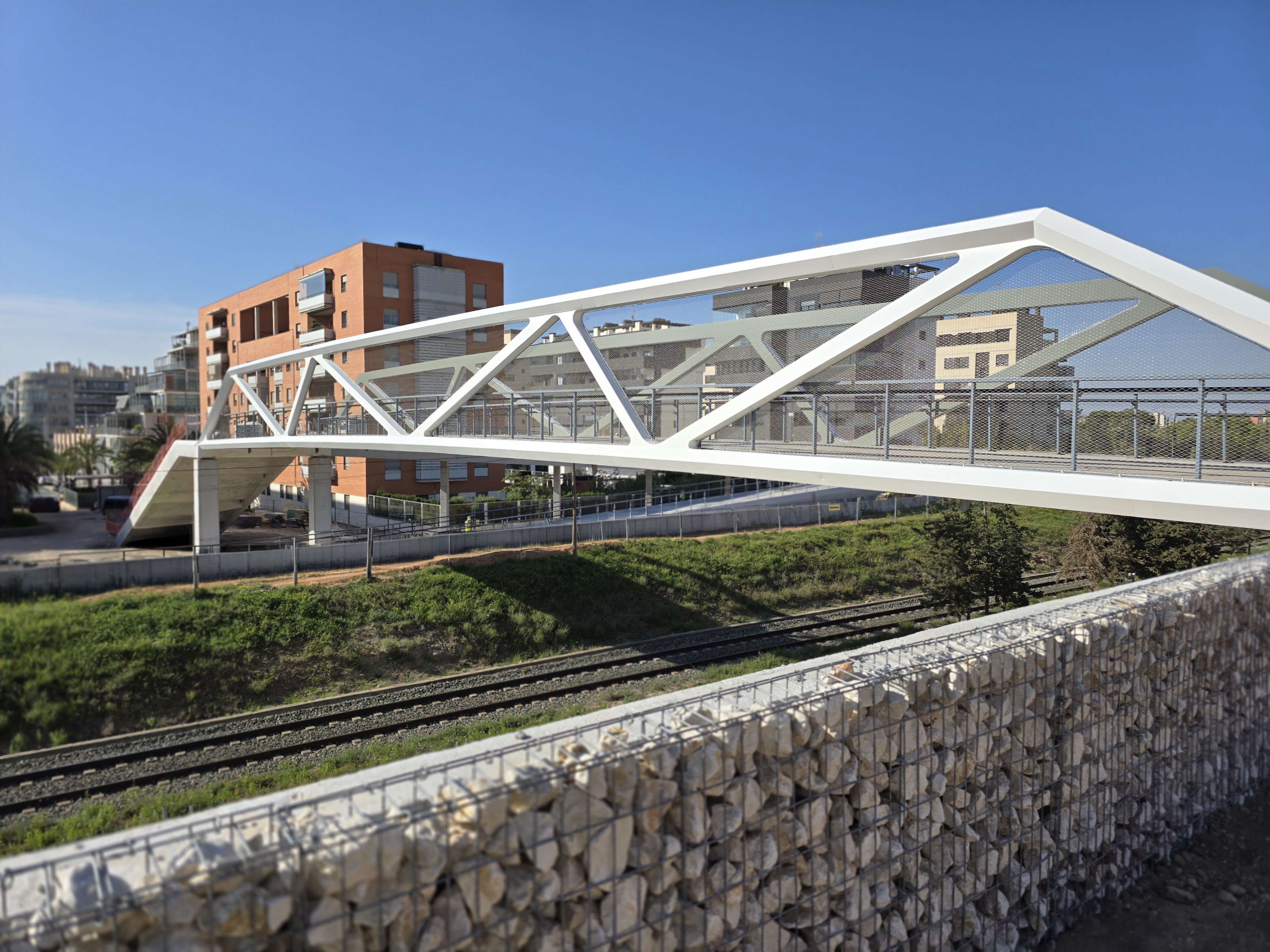

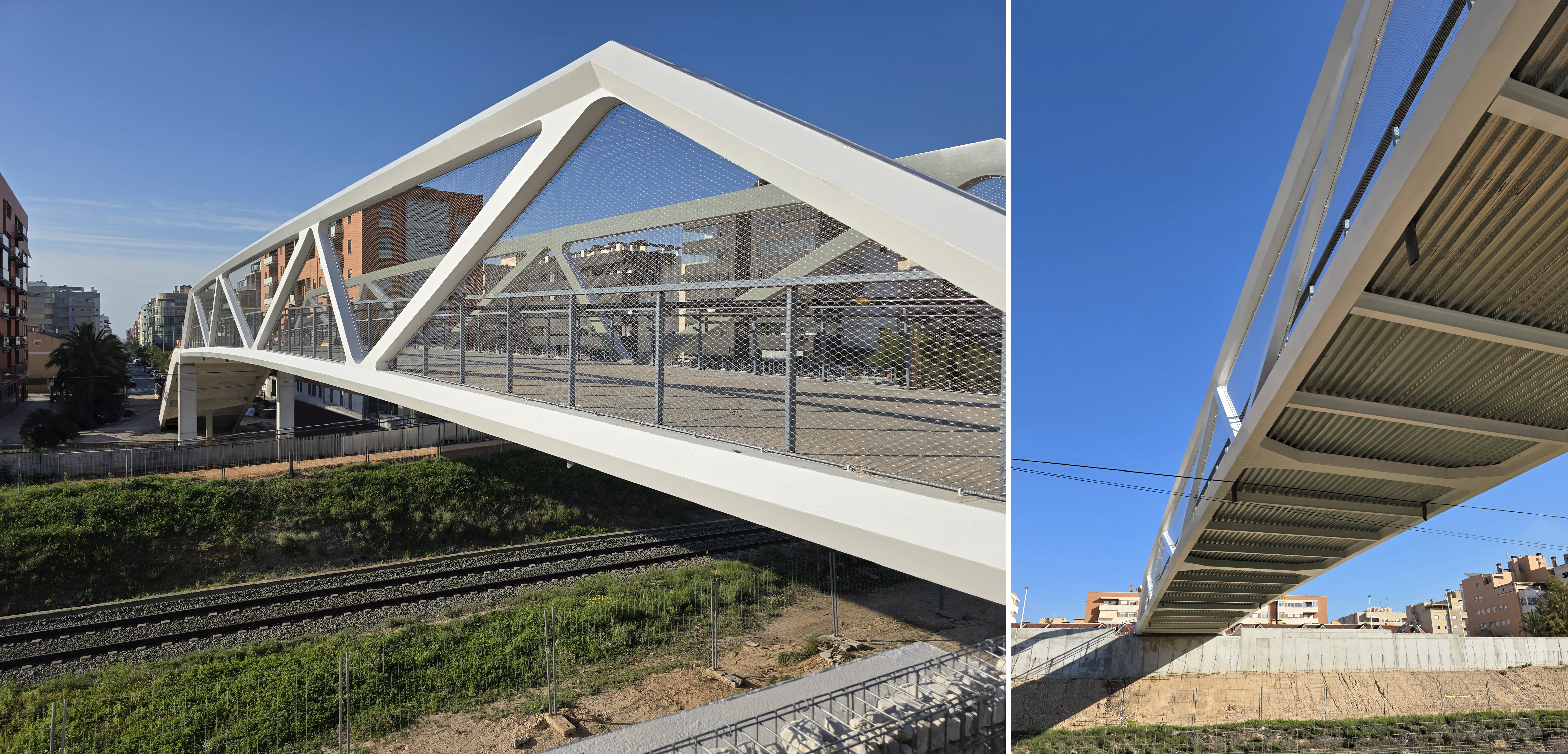

The walkway is designed as a Warren-type metal lattice with a span of 43.6 meters, a rectangular section of 3.4 meters in height, and 5.8 meters in width. It was designed with sufficient space for a possible track doubling and maintaining a height of 7 meters above the train route.
The work consisted of the study for the execution of a pedestrian walkway, ramps, and access stairs, along with a retaining wall and the urbanization of the surroundings over the Alicante-Elche suburban train line, in the Altabix area in Elche (Alicante).
The walkway is designed as a Warren-type metal lattice with a span of 43.6 meters, a rectangular section of 3.4 meters in height, and 5.8 meters in width. It was designed with sufficient space for a possible track doubling and maintaining a height of 7 meters above the train route.
