La Zarzuela interchange footbridge

Madrid, España

Structural typology: PEDESTRIAN BRIDGES
Date: July, 1996
Owner: Ministro de Fomento
Construction: ute ocp- auxini
Scope: detailed design and construction support

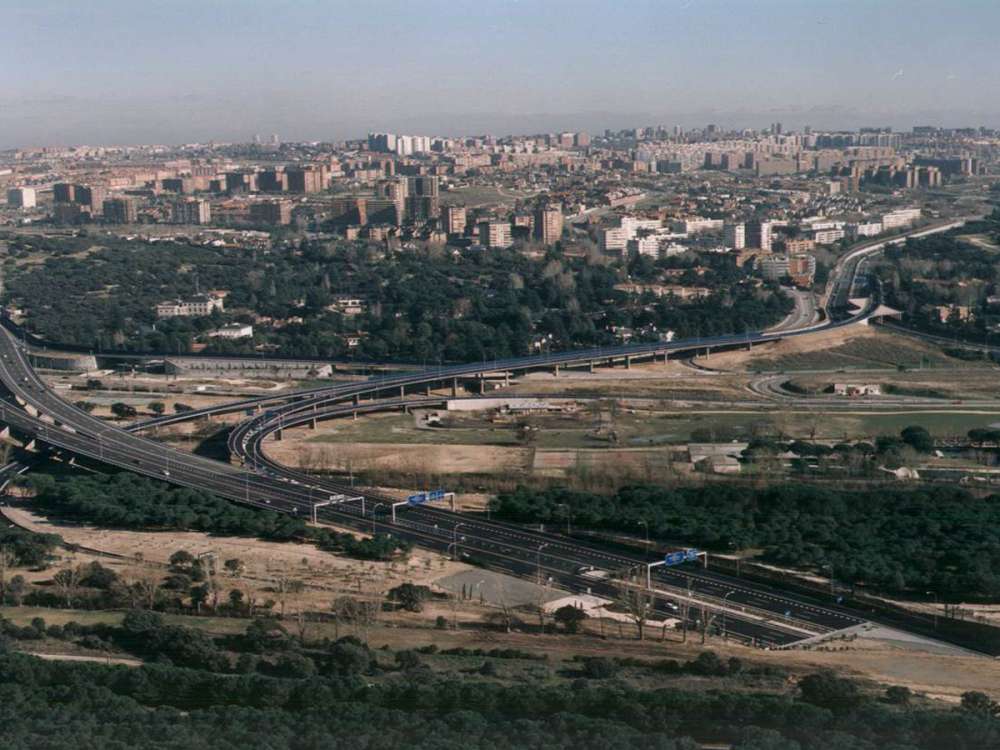

The Zarzuela Junction is located on the M-40 belt motorway, over the El Pardo motorway and the River Manzanares, connecting the M-40 and M-30 belt motorways with the El Pardo motorway. Concentrated in a very small area, there are 2,247,20 metres of viaducts and bridges and 32,760 m2 of structures.

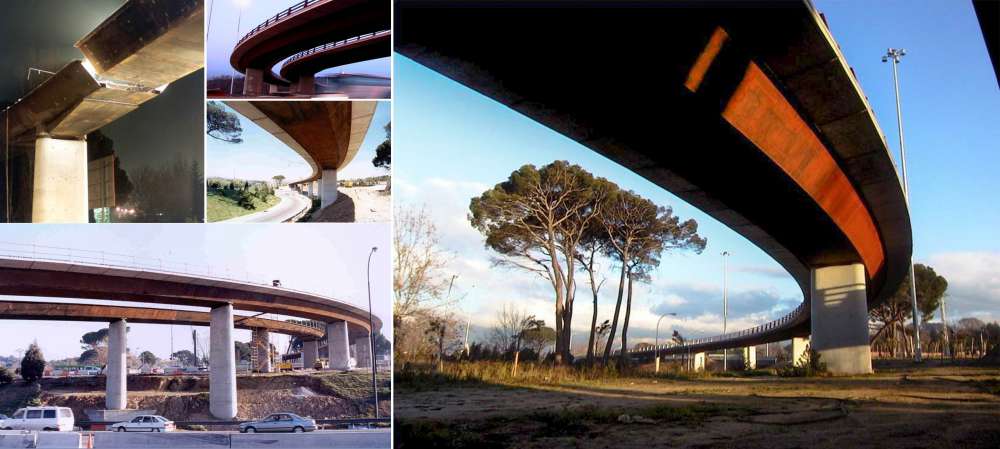

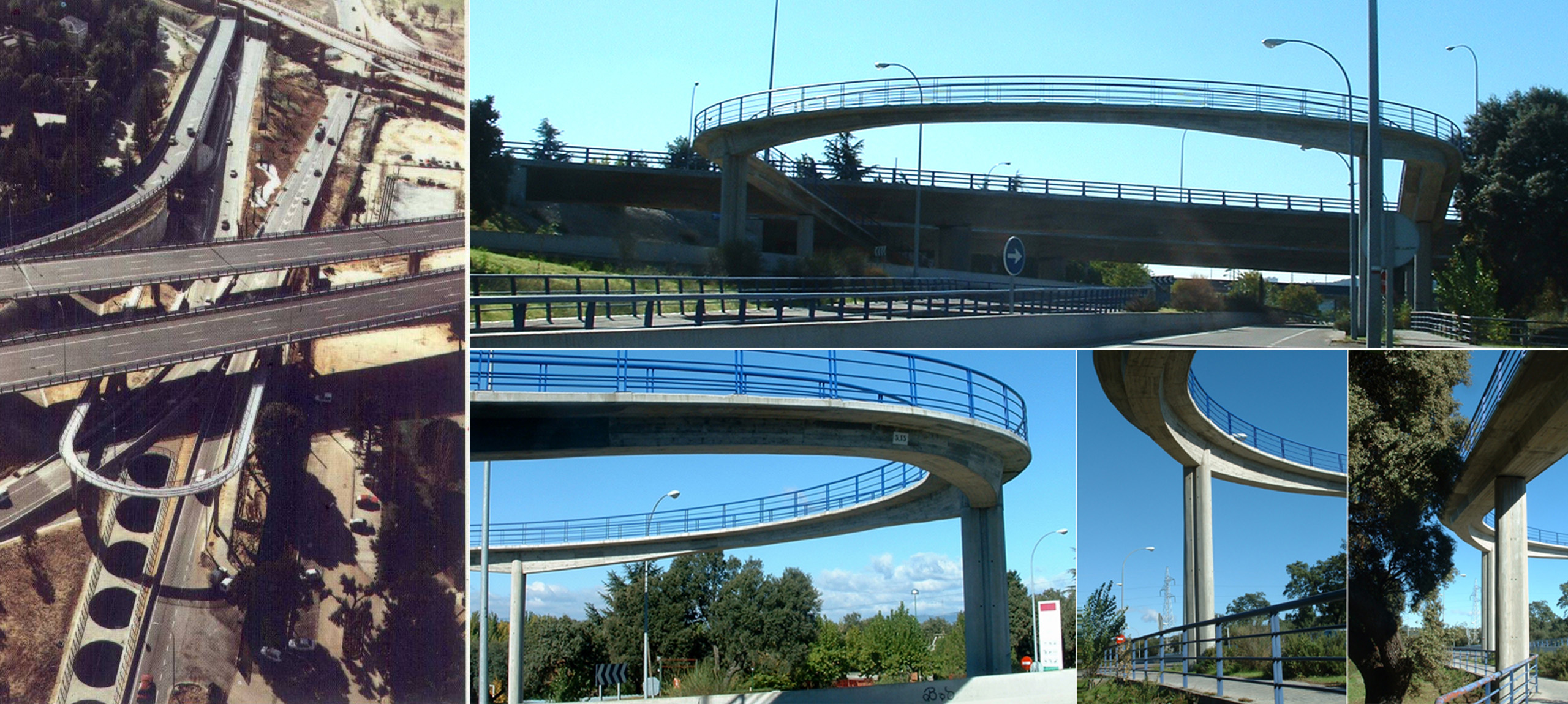

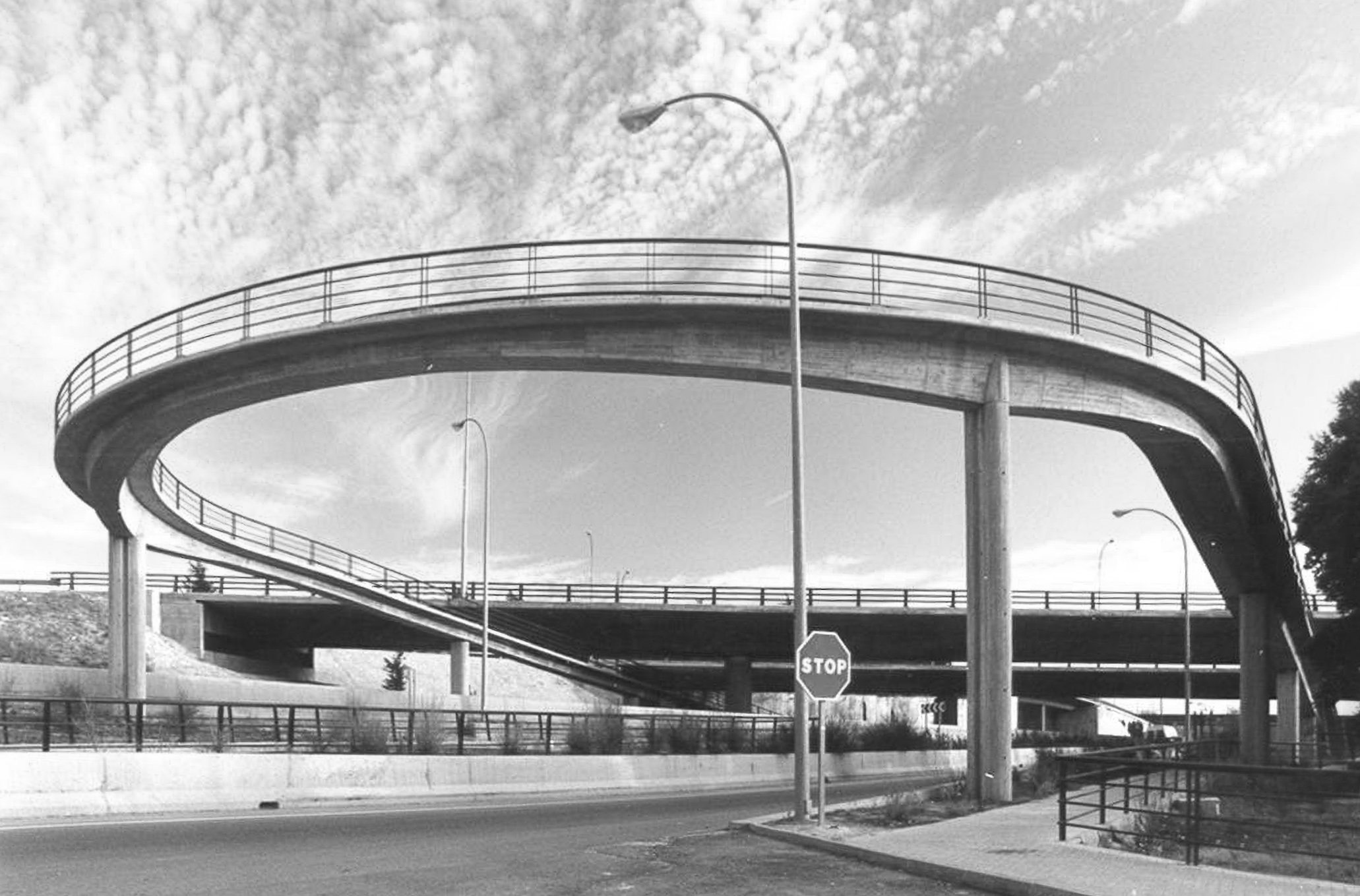

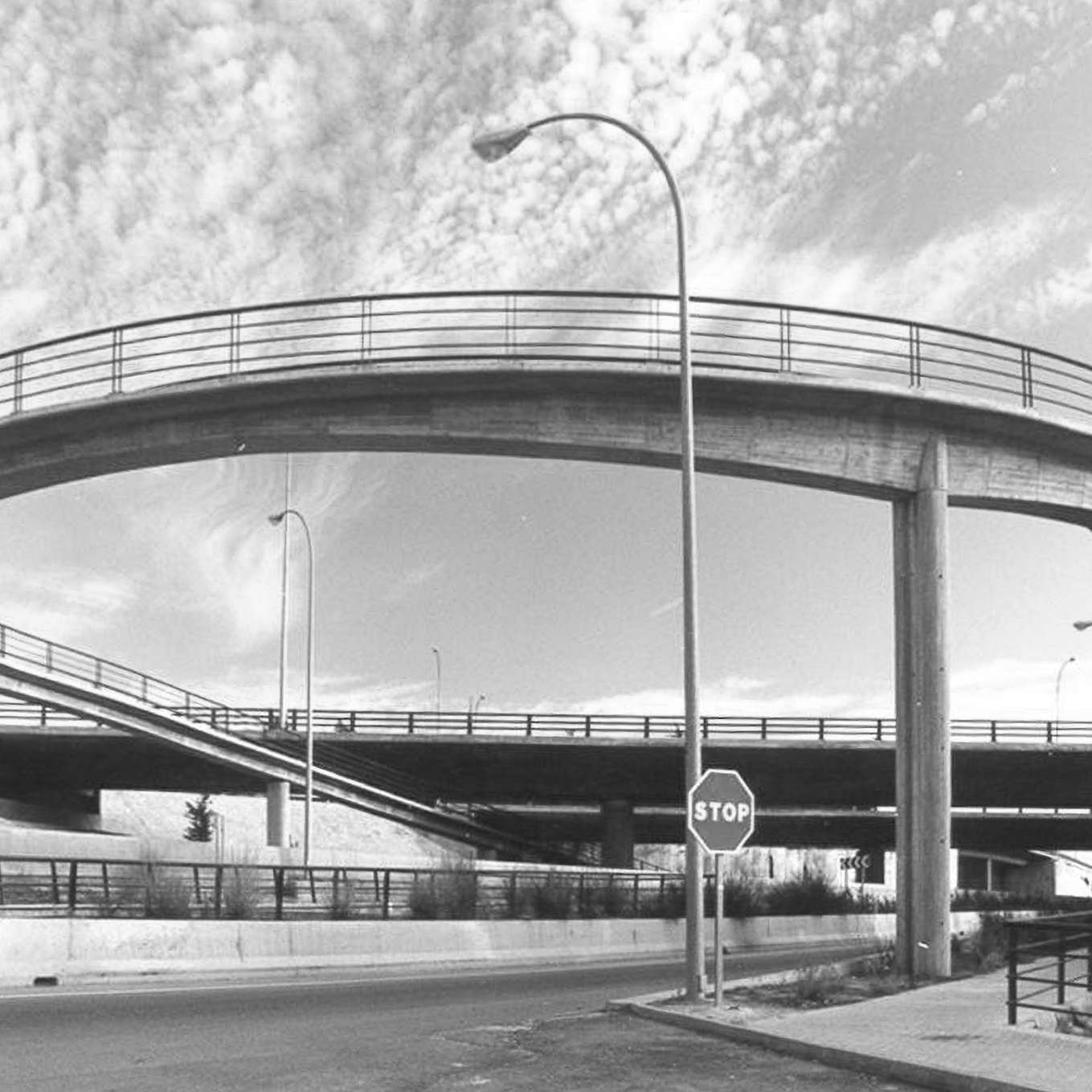

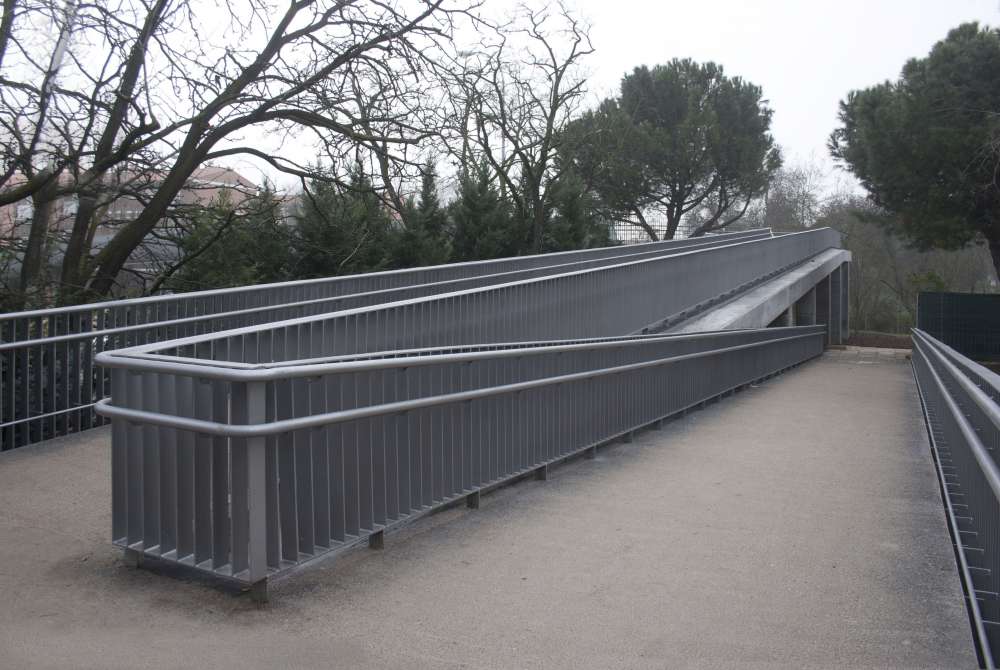

The pedestrian footbridge described had to be compatible, in form and shape, with the remaining structures. The adopted solution is a horseshoe-shaped footbridge. It has nine spans (10,00 + 15,00 + 15,00 + 19,90 + 29,80 + 19,90 + 15,00 + 15,00 + 10,00 m long). On each side, the first three spans and 4/5 of the fourth one are made of reinforced concrete. The last 1/5 of the fourth span and the main span are pre-stressed. The main span is curved and has variable depth.
