Expansion of 380 kV electrical substation

Hooghalen, Netherlands

Structural typology: INDUSTRIAL STRUCTURES
Date: October, 2020
Owner: TENNET
Scope: detailed design

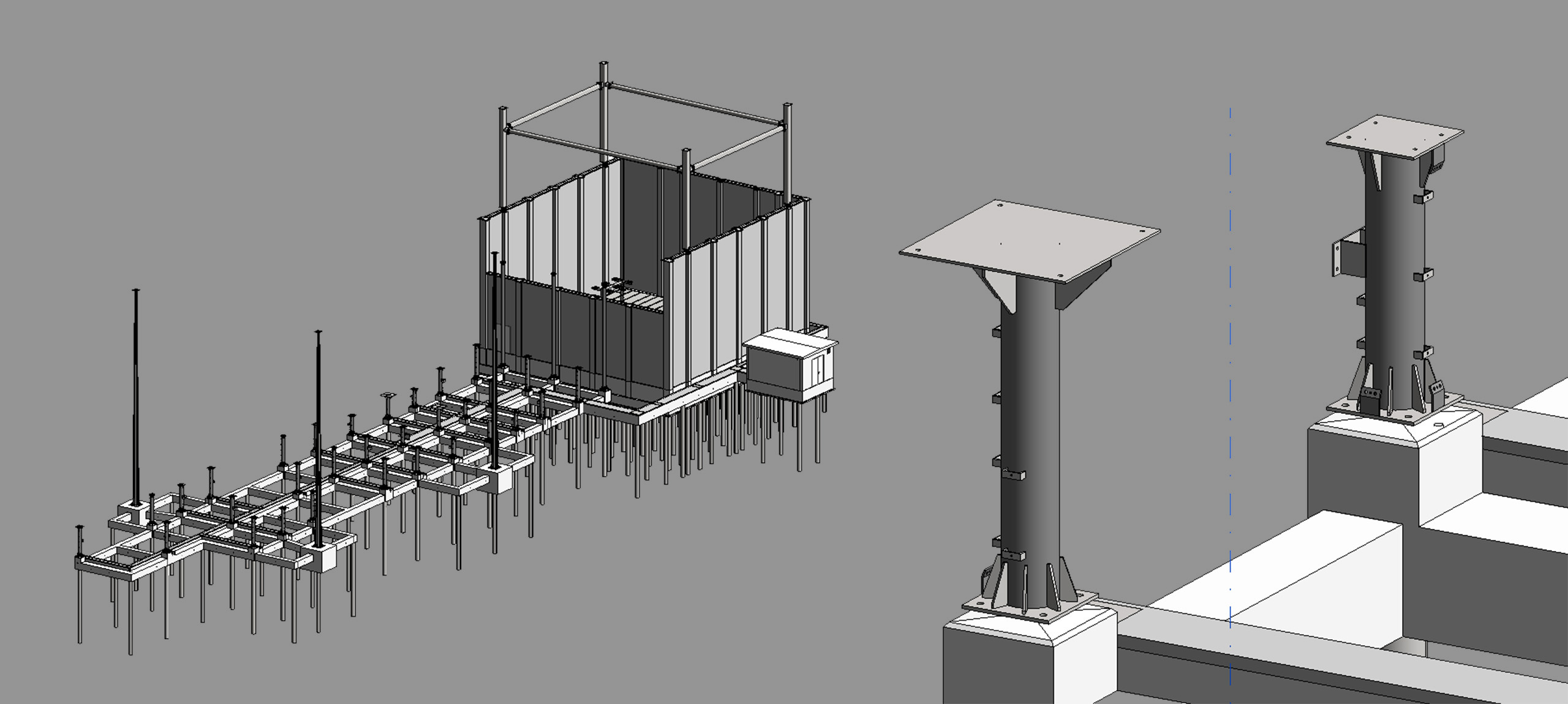

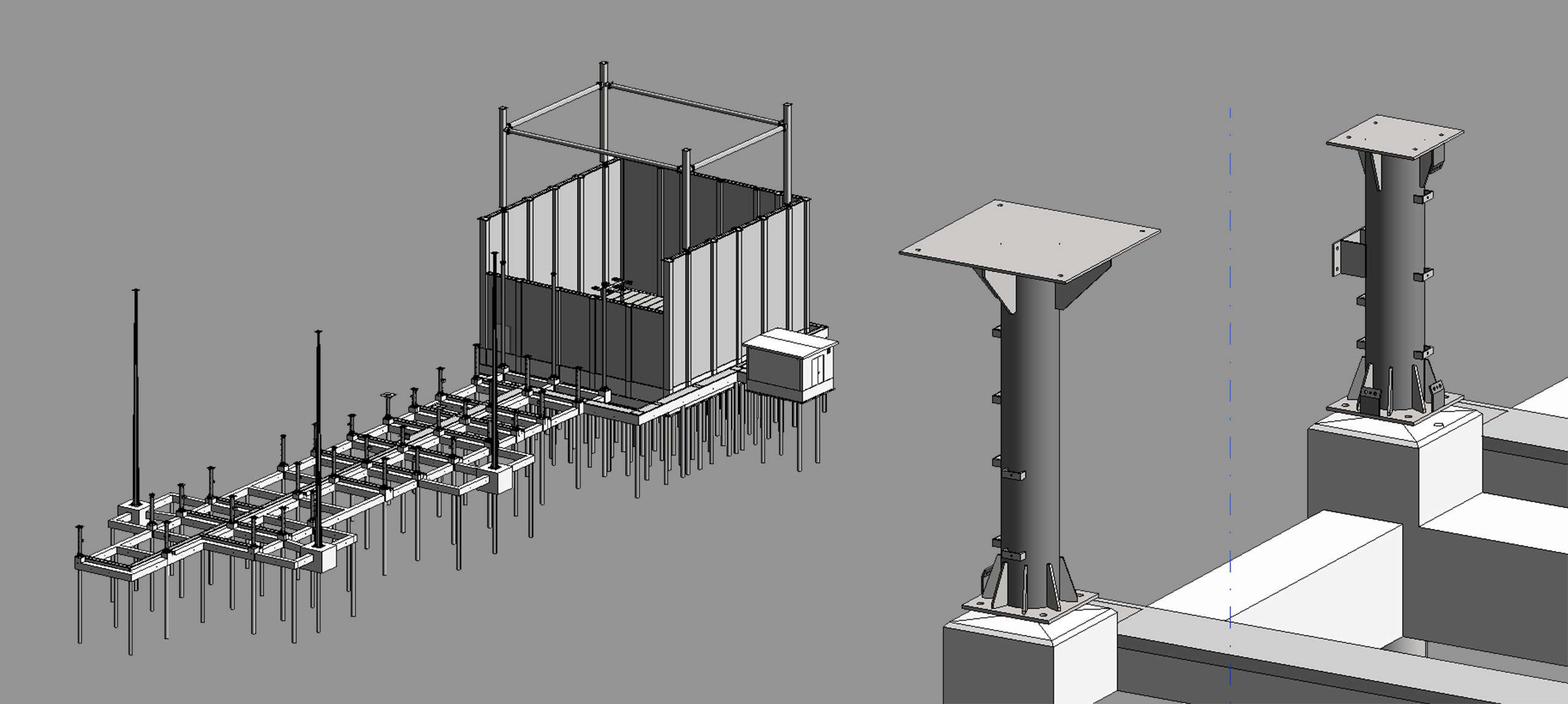

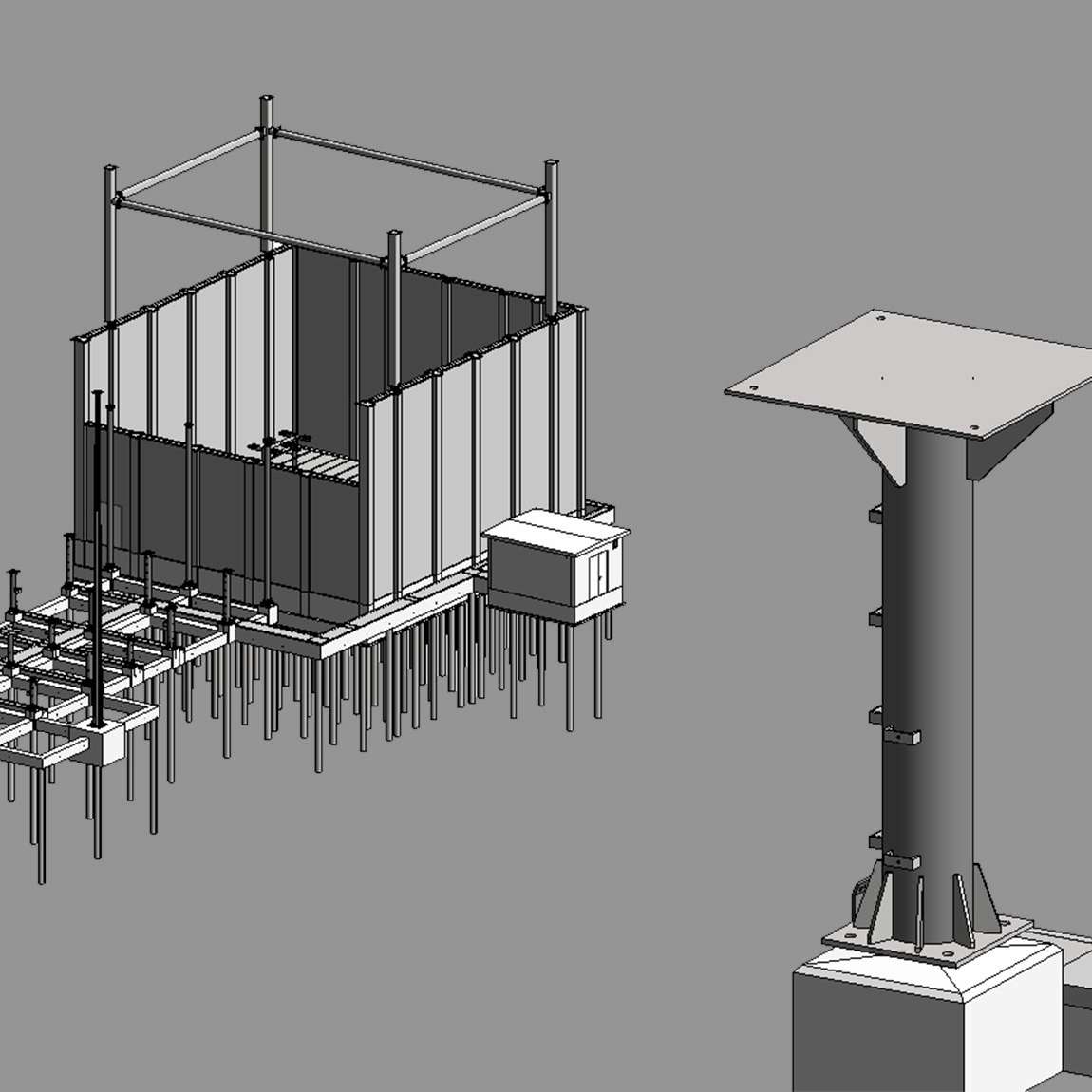

FHECOR developes the structural design of the following elements of the substation:
- Transformer foundation with oil collection pit made of in-situ concrete, separated from the outside by 12 m high precast concrete fire walls.
- Electrical switchgear supports of different types made of hollow structural sections, including their respective foundations.

Control house made of prefabricated concrete panels on façades and roof.
