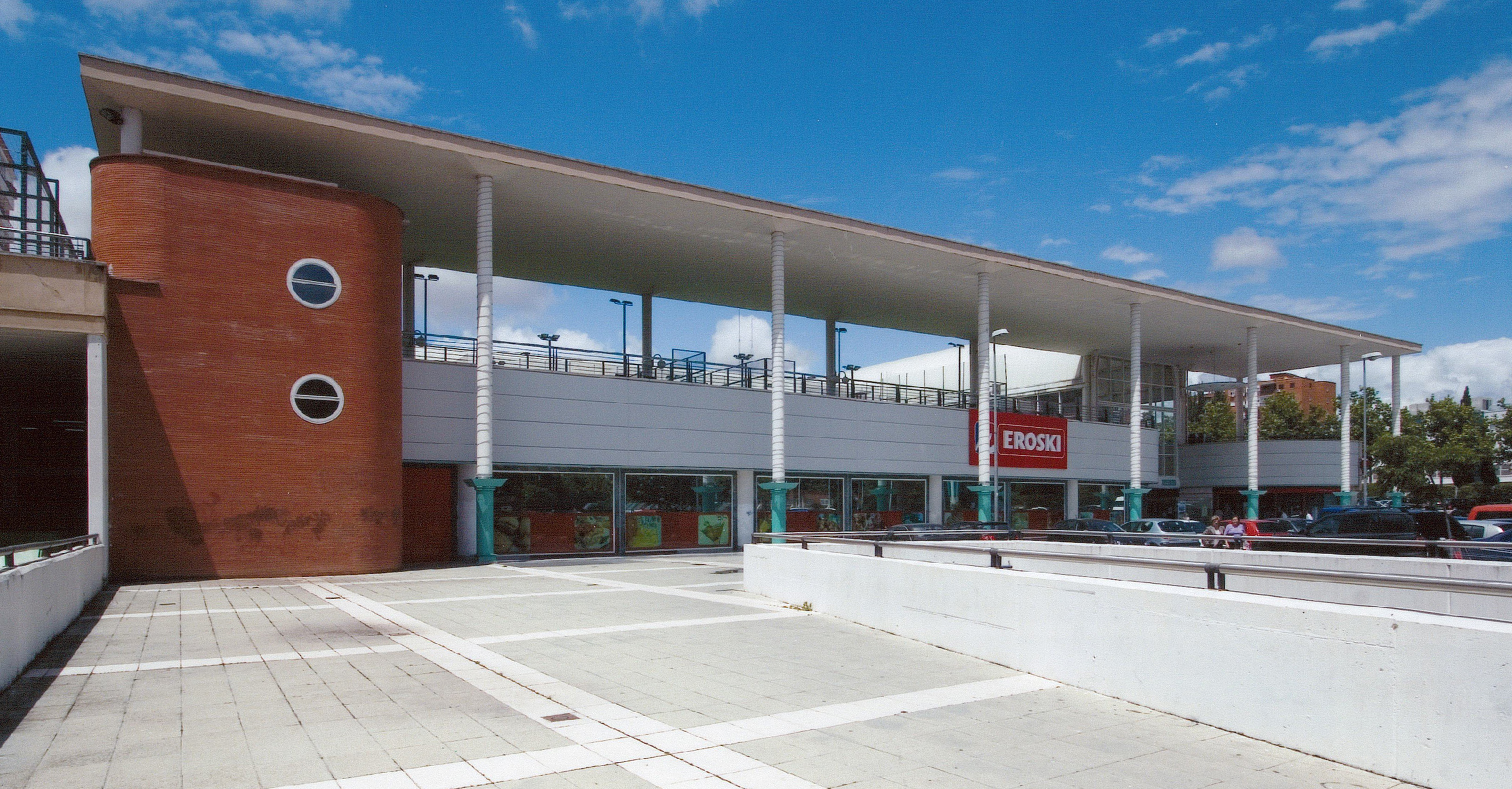

Plaza de Las Provincias Shopping Center
Fuenlabrada, Madrid, España
Architect Unión de Arquitectos
Structural typology Shopping Centers
Date January, 1997
Owner Inmobiliaria Lualca
Las Provincias Shopping Centre has a floor surface area which is 107.0m x 78.0m and is semi-trapezoidal in shape. It is composed of a regularly distributed 12.00m x 12.00m column layout. The resulting structure consists of a pre-stressed slab with post-tensioned, bonded four-strand steel reinforcement in an oval sheath.
The slab is 0.32m deep with 0.55m deep cone-shaped abacuses at the column heads. The active reinforcement is mainly distributed upon the columns. The columns are circular, ranging from 0.50m to 0.80m in diameter and are made of pre-stressed concrete. The whole building has been designed to be joint-free.
Pro
Las Provincias Shopping Centre has a floor surface area which is 107.0m x 78.0m and is semi-trapezoidal in shape. It is composed of a regularly distributed 12.00m x 12.00m column layout. The resulting structure consists of a pre-stressed slab with post-tensioned, bonded four-strand steel reinforcement in an oval sheath.
The slab is 0.32m deep with 0.55m deep cone-shaped abacuses at the column heads. The active reinforcement is mainly distributed upon the columns. The columns are circular, ranging from 0.50m to 0.80m in diameter and are made of pre-stressed concrete. The whole building has been designed to be joint-free.

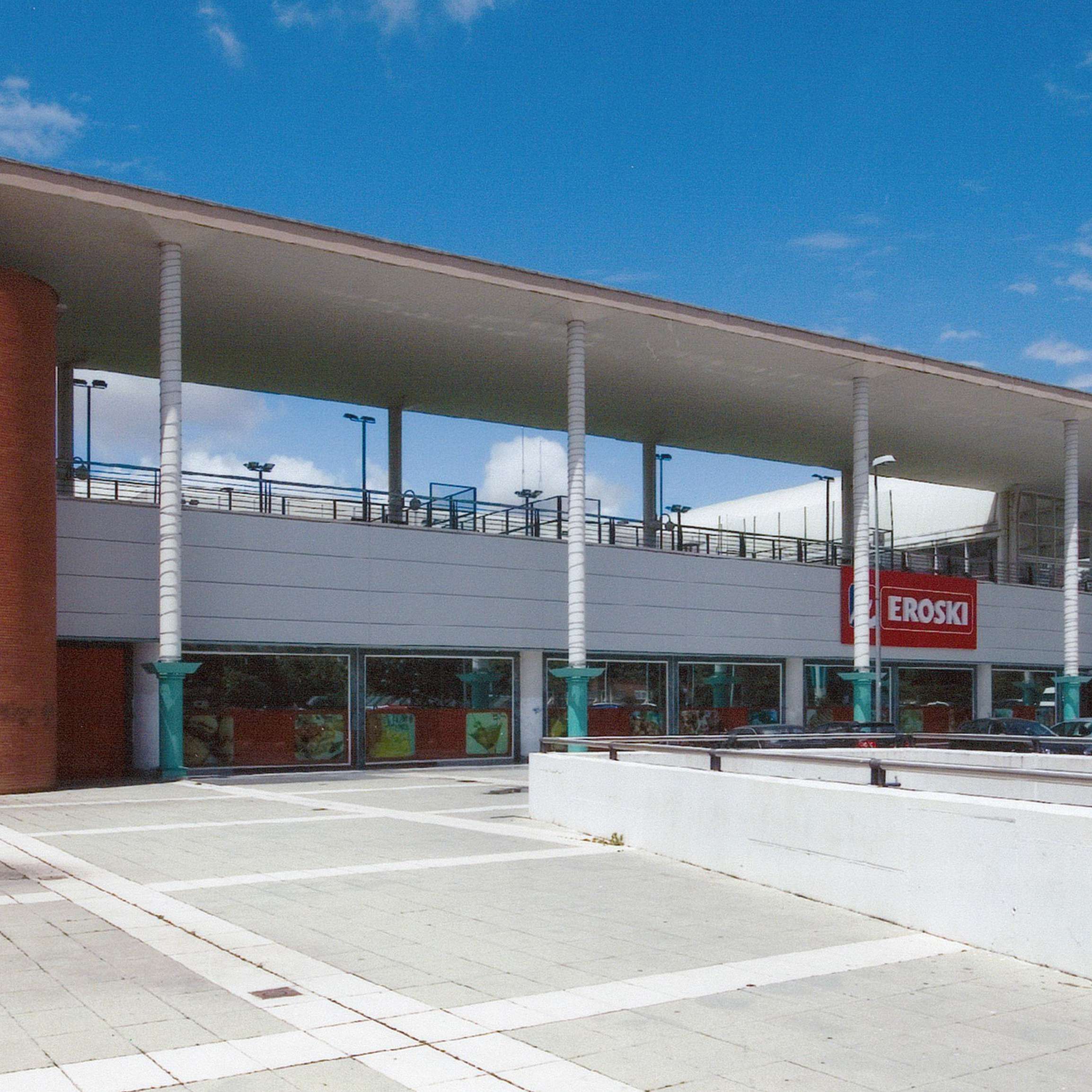

Plaza de Las Provincias Shopping Center
Fuenlabrada, Madrid, España
Architect Unión de Arquitectos
Structural typology Shopping Centers
Date January, 1997
Owner Inmobiliaria Lualca
Scope Detailed design
Las Provincias Shopping Centre has a floor surface area which is 107.0m x 78.0m and is semi-trapezoidal in shape. It is composed of a regularly distributed 12.00m x 12.00m column layout. The resulting structure consists of a pre-stressed slab with post-tensioned, bonded four-strand steel reinforcement in an oval sheath.
The slab is 0.32m deep with 0.55m deep cone-shaped abacuses at the column heads. The active reinforcement is mainly distributed upon the columns. The columns are circular, ranging from 0.50m to 0.80m in diameter and are made of pre-stressed concrete. The whole building has been designed to be joint-free.
